A 12-tab spreadsheet, rebuilt as a cable burial risk platform.
Ternan Energy work out how deep an offshore wind export cable has to be buried to survive a ship's anchor. That calculation lived in an Excel workbook that took ten minutes to run, buckled under a hundred thousand rows of vessel data, and needed a second copy every time the seabed changed. We rebuilt it as a CBRA platform on Microsoft Azure — the same Carbon Trust methodology, in Python, behind a React interface.
Twelve spreadsheet tabs, one application.
Six pillars behind the platform.
The brief was not to redesign the assessment — it was to take a method that already worked and give it somewhere better to live. We decoupled the proprietary logic from Excel and rebuilt around it as a lean MVP, scoped to clear the bottleneck rather than gold-plate around it. Six pillars carry it.
The maths out of Excel, into Python
We mapped the Carbon Trust logic out of the workbook cell by cell and rebuilt it as a Python calculation engine — vessel displacement, anchor mass, penetration and drag lookups, strike probability, return periods — then held it against the original .xls outputs in QA until the numbers agreed.

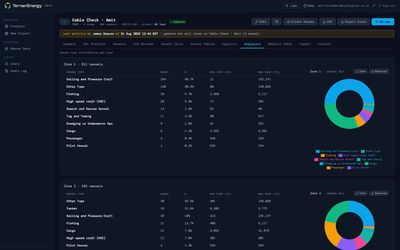

Vessel data at whatever size it arrives
A year of AIS movements across a cable route might be twenty thousand rows or a hundred thousand, and nobody knows which until the data lands. The engine reads to the end of the file instead of to a row limit somebody had to guess at in advance.
Zones that behave like real geology
Soil profiles became reference data rather than hard-coded columns. A route is split into KP zones, each pointing at its own profile, so one project now covers a cable whose seabed changes along its length — no second workbook, no third.

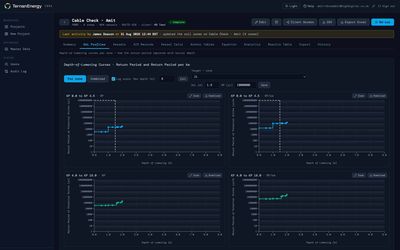

Depth-of-lowering, answered on the spot

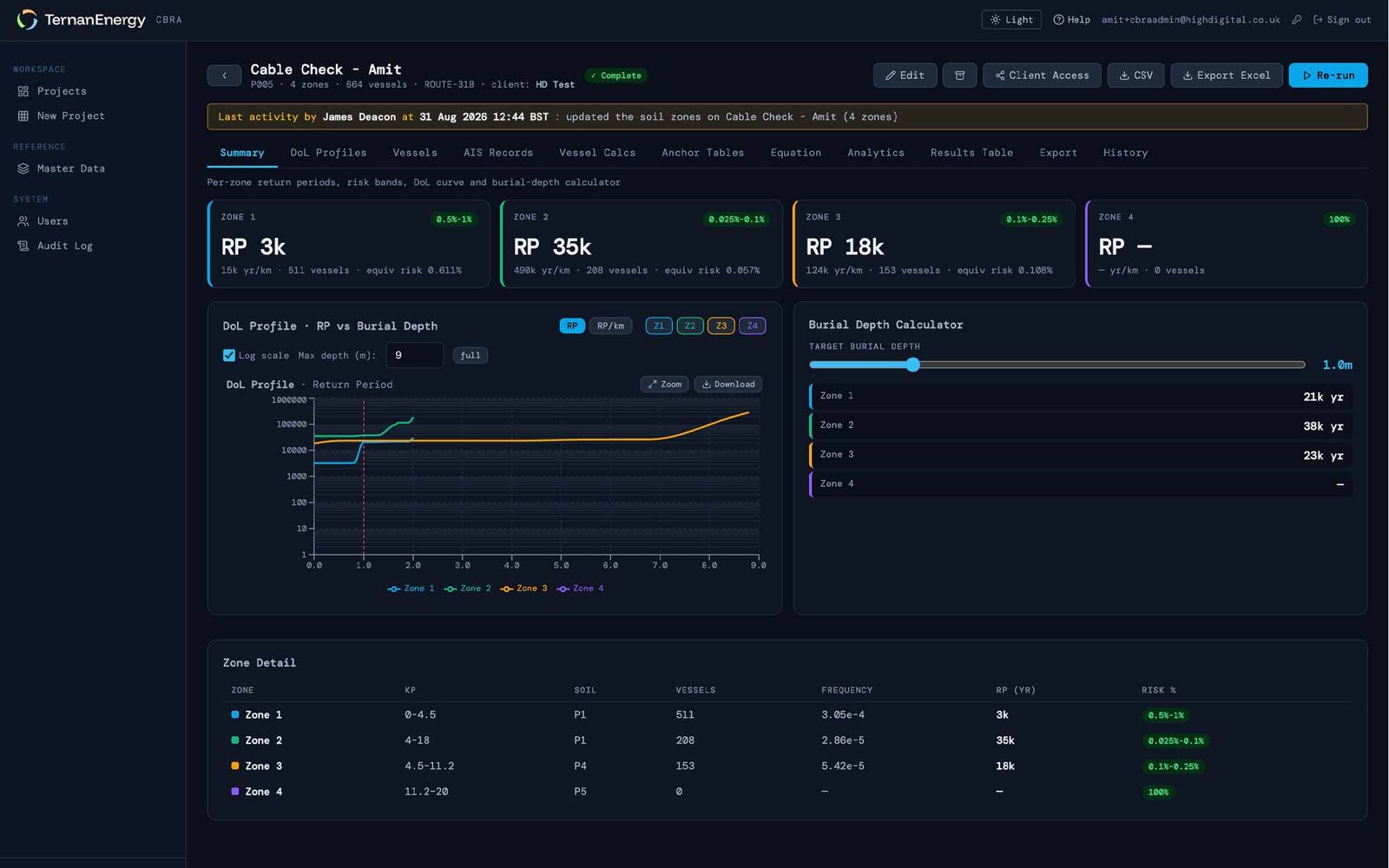

The output engineers actually argue over: return period against burial depth, per zone, plus a burial-depth calculator that turns a target depth straight into a return period rather than another ten-minute run.
Inside their own Microsoft tenancy
Built on Azure with Microsoft Entra ID single sign-on against the Microsoft 365 accounts Ternan already issue, so access starts and ends with the account — which matters when freelance associates join for one project. Ternan own the tenancy and Microsoft bills them directly.
A tool, not a tutorial
Handing over twelve tabs of formulas took a couple of hours. A project list, a six-step setup wizard and tabbed results take minutes, so anyone on the team can pick up a job and run it.
A two-week sprint, workbook to platform.
Prototype
A clickable model of every workbook tab, agreed before a line was built
Week one
Azure, Entra ID single sign-on and the Python calculation engine
Week two
React interface, integration and QA against the original workbook
Since the MVP
Analytics, audit log, master data and multi-user access
What the platform is built with.
A Python engine doing the maths, a React interface in front of it, and all of it inside Ternan Energy's own Azure tenancy on their existing Microsoft licences.
Microsoft Azure
Python
FastAPI
React.js
Azure SQL · MS SQLQuestions, answered straight.
